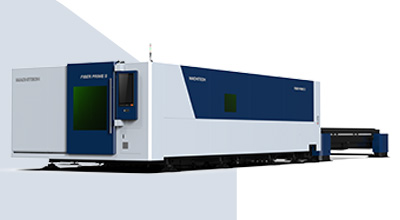

Fiber PRIME S - High Power Laser Cutting Machine

HIGH SPEED. HIGH POWER.

The New Standard in High-Power (12-60kW) Laser Cutting. With advanced technology and high-power capabilities, it ensures efficient operation, rapid processing, and top-tier performance tailored for heavy-duty applications.  Industry-Leading Support from Machitech.

Fiber PRIME S - High Power Laser Cutting Machine

4 G

ACCELERATION

60 kW

12-60 kW POWER

40'

MAX. LENGTH

4"

MILD STEEL CUTTING

CORE FEATURES

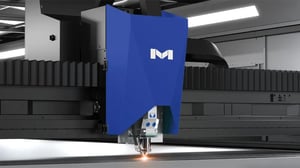

precitec cutting head laser
PRecitec cutting head - exclusive
The Precitec Head created exclusively for the Fiber PRIME S, is built from the ground up for high power applications, thanks to features like Integrated Gas mixing and Focus compensation.

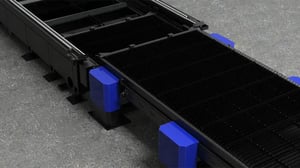

shuttle tables - Built to Last
Our long life shuttle tables are designed for continuous operation in industrial laser cutting applications. The hydraulic system offers smoother, more powerful lifting and exchange capabilities, ensuring stability and reliability even under heavy loads.
laser shuttle tables hydraulic

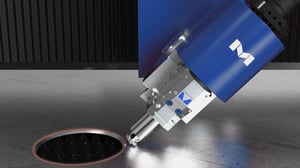

bevel head for machitech laser cutting system
Bevel Cutting Head
The Machitech Bevel Head enables the creation of complex bevel cuts, including V, X, Y, K, and custom angles, in a single operation. It is ideal for industries requiring intricate edge preparation or for replacing current plasma tables with 5-axis capabilities.

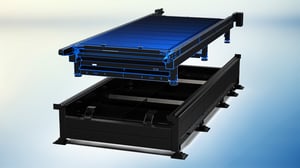

Innovative Modular frame design
The modular frame addresses two important concerns while cutting high power: high-speed precision and reliable heavy-duty performance. Isolating the bed from the motion platform results in high dynamic motion and high load-bearing.
innovative modular frame design

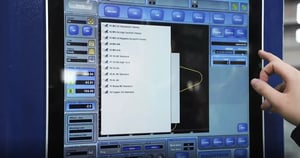

machitech cnc controller for laser
Smart Control - intelligent & Intuitive
Large touchscreen controller provides easy operation. Features include tested parameters for all cutting processes including bevel, remote monitoring, and intelligent path nesting.

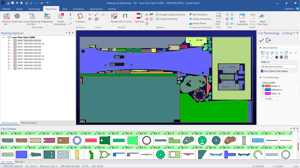

Lantek Expert Cut Nesting Software
Our machines are designed to maximize the capabilities of Lantek Expert Cut, combining advanced nesting and optimized cutting paths with the machine's high-speed precision. Lantek’s automation and parameter management enhance efficiency, while the PRIME S ensures smooth, accurate cuts.
lantek expert cut nesting software for laser
Show more
  • High Power Capabilities - from 12kW to 60kW Laser Sources
  • Durable Construction - Designed for 24/7 operation
  • Multi-Process - Cutting, Marking and Beveling in a single operation
  • Reinforced Frame - Can Handle up to 4" Steel Plate
  • Automated Shuttle Tables - Hydraulic Lifting Mechanism
  • Integrated Gas Mixing - Precise gas blend control at the head
  • Focus Compensation - Automatically Adjusts Laser Focus Height
  • CNC Controller - Touch Screen Controller w/ Remote Management
  • Lantek Expert Cut - Industry Leading Nesting Software
  • Full Process Database - Integrated and tested parameters/cut charts

MACHINE SPECIFICATIONS

MODELS
5' x 10'
6' x 12'
8' x 20'
8' x 24'
OPERATIONAL DATA
Sheet Length
122" (3100 mm)
157" (4000 mm)
244" (6200 mm)
315" (8000 mm)
Sheet Width
63" (1600 mm)
78" (2000 mm)
98" (2500 mm)
98" (2500 mm)
Acceleration
4 G
2.8 G
2.8 G
2.8 G
Rapid Speed
9500 ipm (240 m/min)
7875 ipm (200 m/min)
7875 ipm (200 m/min)
7875 ipm (200 m/min)
Workpiece Weight
5950 lbs (2700 kg)
9700 lbs (4400 kg)
26100 lbs (1200 kg)
31300 lbs (14100 kg)
MACHINE DIMENSIONS
Total Length
389" (9880 mm)
468" (11890 mm)
655" (16640 mm)
777" (19750 mm)
Total Width
126" (3198 mm)
138" (3520 mm)
157" (4000 mm)
158" (4020 mm)
Total Height
105" (2680 mm)
105" (2680 mm)
105" (2680 mm)
105" (2680 mm)
Weight
25350 lbs (11500 kg)
35250 lbs (16000 kg)
45200 lbs (20500 kg)
56000 lbs (25400 kg)
12KW LASER MAX. THICKNESS
Mild Steel
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
Stainless Steel
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
Aluminum
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
1.5" (40 mm)
Copper
0.4" (10 mm)
0.4" (10 mm)
0.4" (10 mm)
0.4" (10 mm)
Brass
0.5" (14 mm)
0.5" (14 mm)
0.5" (14 mm)
0.5" (14 mm)
20KW LASER MAX. THICKNESS
Mild Steel
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
Stainless Steel
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
2.35" (60 mm)
Aluminum
2" (50 mm)
2" (50 mm)
2" (50 mm)
2" (50 mm)
Copper
0.5" (12 mm)
0.5" (12 mm)
0.5" (12 mm)
0.5" (12 mm)
Brass
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
30KW LASER MAX. THICKNESS
Mild Steel
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
Stainless Steel
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
Aluminum
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
2.75" (70 mm)
Copper
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
0.6" (16 mm)
Brass
0.8" (20 mm)
0.8" (20 mm)
0.8" (20 mm)
0.8" (20 mm)
40KW LASER MAX. THICKNESS
Mild Steel
3" (80 mm)
3" (80 mm)
3" (80 mm)
3" (80 mm)
Stainless Steel
3" (80 mm)
3" (80 mm)
3" (80 mm)
3" (80 mm)
Aluminum
3" (80 mm)
3" (80 mm)
3" (80 mm)
3" (80 mm)
Copper
0.7" (18 mm)
0.7" (18 mm)
0.7" (18 mm)
0.7" (18 mm)
Brass
1" (25 mm)
1" (25 mm)
1" (25 mm)
1" (25 mm)
60KW LASER MAX. THICKNESS
Mild Steel
4" (100 mm)
4" (100 mm)
4" (100 mm)
4" (100 mm)
Stainless Steel
4" (100 mm)
4" (100 mm)
4" (100 mm)
4" (100 mm)
Aluminum
4" (100 mm)
4" (100 mm)
4" (100 mm)
4" (100 mm)
Copper
0.8" (20 mm)
0.8" (20 mm)
0.8" (20 mm)
0.8" (20 mm)
Brass
1.2" (30 mm)
1.2" (30 mm)
1.2" (30 mm)
1.2" (30 mm)
Show more
LEADERS IN HIGH POWER

CUTTING TECHNOLOGY

A suite of advanced cutting technologies for optimal speed, quality, efficiency, and precision.

ZERO-CONTACT HEIGHT TRACKING

Sensors monitor surface distance, adjusting nozzle height for optimal focal point.
+ NOZZLE LIFE & PRECISION

INTELLIGENT BEAM COOLING

Optimizes beam shape by cooling the optics and gases for improved laser performance.
+ EFFICIENCY & LIFESPAN

SPEEDFOCUS™ CUTTING PROCESS

A cutting method that maintains a negative focus for optimal speeds.
+ CUT SPEEDS

QUALITYFOCUS™ CUTTING PROCESS

A cutting method that maintains a positive focus for optimal finish quality.
+ FINISH QUALITY

INTEGRATED HEAD GAS MIXING

Integrated Gas Mixing at the head allows for near instant changes made to the gases at the material.
+ RESPONSE & ACCURACY

LOW GAS PRESSURE CUTTING

A specialized nozzle and gas flow refine the beam, improving airflow and reducing pressure.
+ EFFICIENCY & GAS SAVINGS

ACTIVE DUAL FOCUS COMPENSATION

Real time detection and compensation of focal point deviations.
+ QUALITY & RELIABILITY

DYNAMIC PUNCH PIERCE

Equipped with sensors that optimize piercing in the shortest times possible.
+ SPEED & GAS SAVINGS
