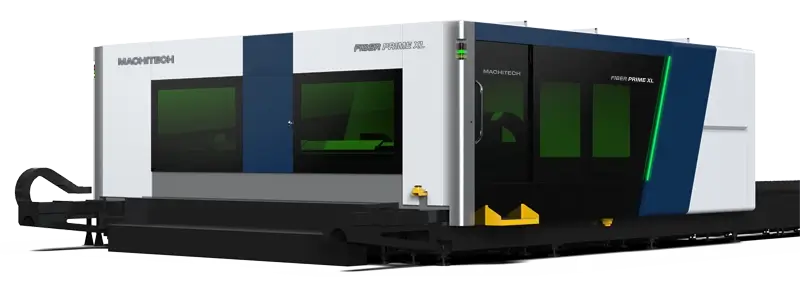

Fiber PRIME XL - Large Format Laser Cutting System

LARGE FORMAT. HIGH POWER.

The Fiber PRIME XL is a high-performance laser cutting powerhouse built for heavy-duty applications. Engineered for large-format and thick-plate cutting, it combines advanced laser technology up to 60kW, high-speed processing, precision & efficiency. An innovative mobile laser cell traverses the material support for true multi-zone cutting, letting it deliver nonstop, 24/7 reliability and maximum throughput.

CORE FEATURES

Precitec cutting head - exclusive

The Precitec Head created exclusively for the Fiber PRIME series, is built from the ground up for high power applications, thanks to features like Integrated Gas mixing and Focus compensation.

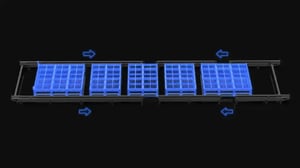

Customizable Modular Bed

The segmented bridge and rail design, combined with an independent cutting table, handles materials up to 4" thick without compromising laser performance. Process multiple sheets on a continuous or separated bed for safety, with an optional "lights out" mode for uninterrupted production.

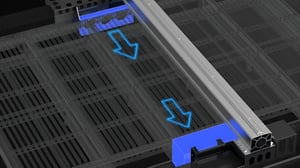

Dust Removal System

A left side blower and right-side exhaust fan work together to remove smoke and dust during cutting, directing it to the dust collector for a cleaner and safer workspace.

BEVEL CUTTING HEAD

The Machitech Bevel Head enables the creation of complex bevel cuts, including V, X, Y, K, and custom angles, in a single operation. It is ideal for industries requiring intricate edge preparation or for replacing current plasma tables with 5-axis capabilities.

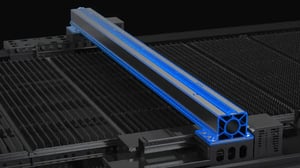

Built For Dynamic Performance

The reinforced crossbeam and advanced manufacturing ensure exceptional dynamic performance, accuracy, and stability during operation. With linear axis speeds up to 110 m/min and acceleration between 0.8–1.1 G, the machine delivers rapid, precise cutting.

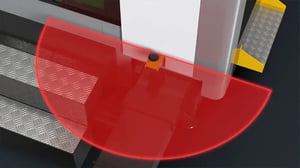

LASER RADAR SAFETY SYSTEM

The Fiber PRIME XL is equipped with three laser radars, ensuring comprehensive safety with precise environmental detection. These radars enhance protection during operation and function as an advanced obstacle avoidance system.

Smart Control - intelligent & Intuitive

Large touchscreen controller provides easy operation. Features include tested parameters for all cutting processes including bevel, remote monitoring, and intelligent path nesting.

Lantek Expert Cut Nesting Software

Our machines are designed to maximize the capabilities of Lantek Expert Cut, combining advanced nesting and optimized cutting paths with the machine's high-speed precision. Lantek’s automation and parameter management enhance efficiency, while the PRIME ensures smooth, accurate cuts.

High Power Capabilities - from 12kW to 60kW Laser Sources
Durable Construction - Designed for 24/7 operation
Multi-Process - Cutting, Marking and Beveling in a single operation
Reinforced Frame - Can Handle up to 4" Steel Plate
Customizable Modular Bed - Process Multiple Sheets

Integrated Gas Mixing - Precise gas blend control at the head
Focus Compensation - Automatically Adjusts Laser Focus Height
CNC Controller - Touch Screen Controller w/ Remote Management
Lantek Expert Cut - Industry Leading Nesting Software
Full Process Database - Integrated and tested parameters/cut charts

MACHINE SPECIFICATIONS

The Fiber PRIME XL can have a customized width and length depending on the table configuration, from 10'x40' up to 15'x160'.

MODELS

10' x 40'

10' x 50'

10' x 65'

10' x 80'

15' x 160'

OPERATIONAL DATA

Processing Range

0.8" - 14" (20 - 350 mm)

2.2" - 19" (60 - 500 mm)

3" - 25" (80 - 630 mm)

Max. Profile Length

40' (12 m)

98" (2500 mm)

Laser Power

6, 12 KW

6, 12, 20 KW

2.8 G

1000

Linear Load Capacity

68 lb/ft (100 kg/m)

135 lb/ft (200 kg/m)

170 lb/ft (250 kg/m)

7875 ipm (200 m/min)

Workpiece Weight

2650 lbs (1200 kg)

5300 lbs (2400 kg)

6600 lbs (3000 kg)

31300 lbs (14100 kg)

Max. Positioning Speed

148 ft/min (45 m/min)

7875 ipm (200 m/min)

Chuck Rotation Speed

75 rpm

45 rpm

Number of Chucks

3D Bevel Capabilities

Optional

MACHINE DIMENSIONS

Total Length

105' (32 m)

777" (19750 mm)

Total Width

26' (8 m)

29' (9 m)

32' (10 m)

158" (4020 mm)

Total Height

12.5' (3.8 m)

105" (2680 mm)

Machine Weight

66100 lbs (30000 kg)

75000 lbs (34000 kg)

85000 lbs (38500 kg)

56000 lbs (25400 kg)

Get Item 5

LEADERS IN HIGH POWER

CUTTING TECHNOLOGY

A suite of advanced cutting technologies for optimal speed, quality, efficiency, and precision.

ZERO-CONTACT HEIGHT TRACKING

Sensors monitor surface distance, adjusting nozzle height for optimal focal point.

+ NOZZLE LIFE & PRECISION

INTELLIGENT BEAM COOLING

Optimizes beam shape by cooling the optics and gases for improved laser performance.

+ EFFICIENCY & LIFESPAN

SPEEDFOCUS™ CUTTING PROCESS

A cutting method that maintains a negative focus for optimal speeds.

+ CUT SPEEDS

QUALITYFOCUS™ CUTTING PROCESS

A cutting method that maintains a positive focus for optimal finish quality.

+ FINISH QUALITY

INTEGRATED HEAD GAS MIXING

Integrated Gas Mixing at the head allows for near instant changes made to the gases at the material.

+ RESPONSE & ACCURACY

LOW GAS PRESSURE CUTTING

A specialized nozzle and gas flow refine the beam, improving airflow and reducing pressure.

+ EFFICIENCY & GAS SAVINGS

ACTIVE DUAL FOCUS COMPENSATION

Real time detection and compensation of focal point deviations.

+ QUALITY & RELIABILITY

DYNAMIC PUNCH PIERCE

Equipped with sensors that optimize piercing in the shortest times possible.

+ SPEED & GAS SAVINGS
